STAINLESS STEEL VALVE

Swing Check Valve (BSP)

316 S/S
Class 200
Integral Seat

Swing Check Valve (BSP)

Swing Check Valve (BSP)
L	65	8	89	106	19	140	160	200
Weight Kg	0.32	0.54	0.72	1.06	1.72	2.34	5.5	7.95

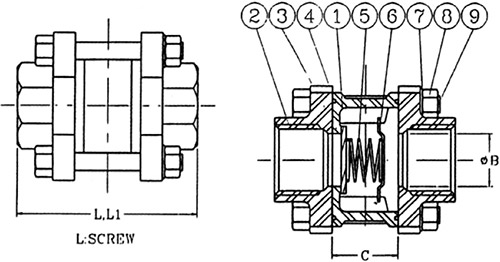

Spring Check Valve (BSP)

316 S/S
1000psi (69 Bar) WOG

Stainless Steel Spring Valves

Spring Check Valve (BSP)
Size	1/4”	3/4”	1”	11/4”	11/2”	2”	21/2”	3”
d	11.8	91.5	107.5	126	140.5	171	171	196
L	33	39	45	52	64	78	120	50
L1	0.38	0.56	0.87	1.38	1.91	3.02	5.2	7.1
D	18.3	21	24	29.2	36.1	45.2	50.4	63.5
D1	31	31	32	44.9	55	71.3	78	91

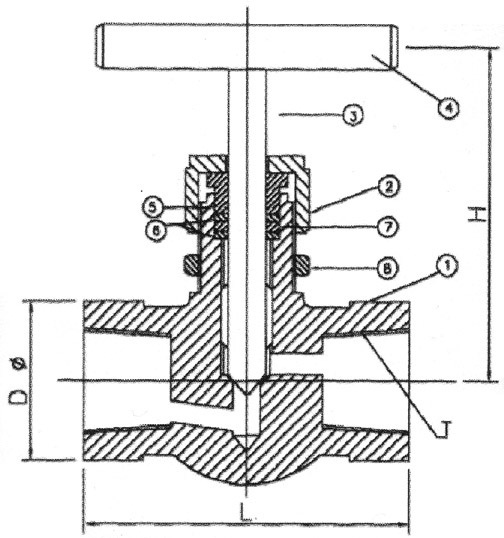

Needle Valve (NPT) (BSP)

316 S/S with Teflon Gland Seal
3000 - 8000 psi at 38-66˚C

Stainless Steel Needle Valves

Needle Valve (NPT) (BSP)
Size	L	D	H-Close	H-Open
1/4”	50	19	52	58
3/8"	50	23	55	62
1/2"	64	30	67	73
3/4"	64	37	70	78
1”	78	43	90	100

BSP Male Sample Cock

Stainless Steel Needle Valves

BSP Male Sample Cock
Size	Ød	Ød1	n	h	l	L1	L2
1/2" NPT	6.5	6.5	2	47.0	(75.4)	33.0	65.0

Quick Enquiry

If you have drawings or photos, please email admin@stainlesspsupplies.com.au.
