BRITISH STANDARD MILK FITTING

Also available in DIN, SMS, 3A

Tri Clover
12 mm
18 mm
25 mm
38 mm
50 mm
63 mm
76 mm
101 mm

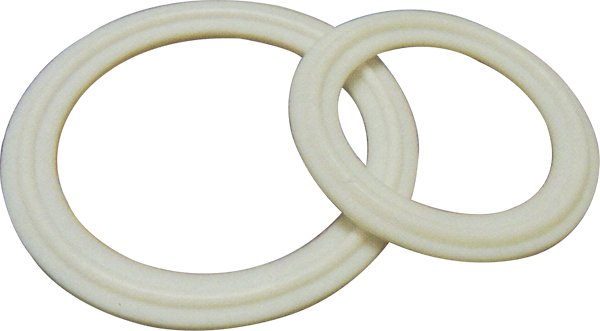

Tri Clover

  • Ferral, Clamp, and blanking cap.
  • Also available in Teflon, EPDM & Viton
Tri Clover British Standard Milk Fittings

Round Nut

  • 316 S/S
  • 1000psi (69 Bar) WOG
Round Nut British Standard Milk Fittings

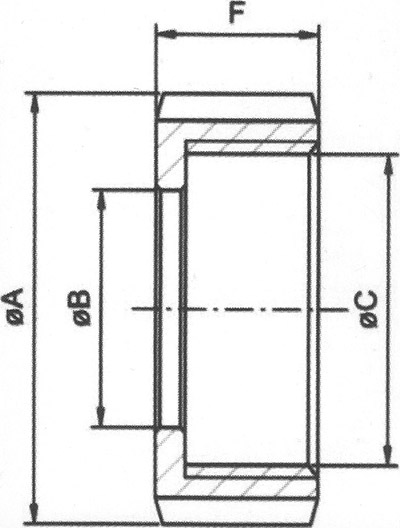

Round Nut
Size A B C F
1" 58.5 33.3 42.6"1/8 22.2
11/2" 74 46 55.3"1/8 22.2
2" 85.5 58.7 68.3"1/6 22.2
21/2" 18.3 71.4 80.9"1/6 22.2
3" 111.6 84.1 93.6"1/6 22.2
4" 138 109.5 119.1"1/6 22.2
5" 172.5 136 144.1"1/6 24
6" 197 162.6 169.6"1/6 23.5

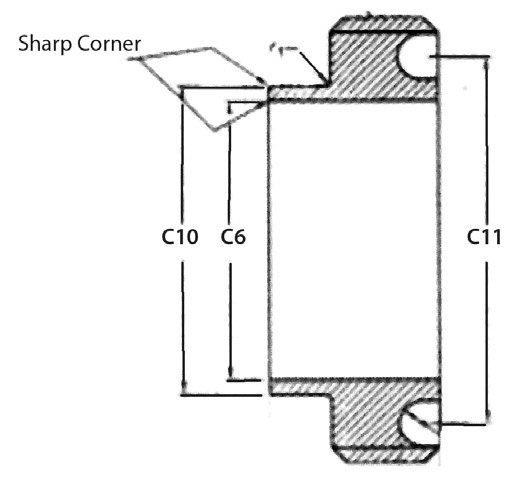

CIP Male 316
Size C6 C10 C11
1" 22.2 25.4 33.3
11/2" 34.9 38.1 46
2" 47.6 50.8 58.7
21/2" 60.3 63.5 71.4
3" 73 76.1 84.1
4" 98.4 101.6 109.5

BSM CIPM - CIP Male and Liner

>BSM CIPM - CIP Male and Liner British Standard Milk Fittings
