STAINLESS STEEL TUBE FITTING

  • Superior Finish (Patent Finish)
  • Superior Bending
  • Superior Wall Thickness (True Gauge)
  • Superior Weldability
  • Superior Corrosion Resistance
Tube
Size (mm) 316L Mirror Tube Buff Tube 6 metre length
22.2 x 1.2 DOT DOT   DOT
22.2 x 1.6 DOT DOT   DOT
25.4 x 1.2 DOT DOT   DOT
25.4 x 1.6 DOT DOT   DOT
25.4 x 3 DOT DOT   DOT
31.8 x 1.6 DOT DOT   DOT
38.1 x 1.6 DOT DOT   DOT
44.5 x 1.6 DOT DOT   DOT
50.8 x 1.6 DOT DOT   DOT
50.8 x 3 DOT DOT   DOT
60.3 x 3 DOT DOT   DOT
63.5 x 1.6 DOT DOT   DOT
63.5 x 3 DOT DOT   DOT
19.05 x 1.2 DOT   DOT DOT
19.05 x 1.6 DOT   DOT DOT
22.2 x 1.6 DOT   DOT DOT
25.4 x 1.6 DOT   DOT dots
31.8 x 1.6 dot   dot dot
38.1 x 1.6 DOT   DOT DOT
50.8 x 1.6 DOT   DOT DOT
76.2 x 1.6 DOT   DOT DOT

Equal Tee
Uni Polish Bends 304 and 316 Stainless Steel

Tee Dimensions - AS: 1528.3
Tube 00 12.7 19.1 25.4 31.8 31.8 38.1 50.8 6.5 76.2 101.6 152.4
Product Codes
T304 SS 0564ET 0764ET 1064ET 1264ET 1264ET 1564ET 2064ET 2564ET 3064ET 4064ET 60.204ET
T316 SS 0566ET 0766ET 1066ET 1066ET 1266ET 1566ET 2066ET 2566ET 30.66ET 4066ET 6020ET
DIM A 38.1 57.2 76.2 76.2 95.4 114.3 152.4 190.5 190.5 304.8 457.2
Dim B 12.7 19.1 25.4 25.4 31.8 38.1 50.8 63.5 63.5 101.8 152.4
Wall Thickness 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.5 1.6 1.6 2.0
Stainless Steel Tube Fittings Australia

90 Degree Bend
Uni Polish Bends 316 and 304 Stainless Steel

90 Degree Bend
Ovality ±0.5% of OD
Square Target 0.2mm, Max 0.4mm
Dim A + 1mm .0mm
Dim B Nominal
Radius Nominal
Stainless Steel Tube Fittings Dimensions
Zentan (Zero Tangent) Dimensions
Tube 0D 25.4 31.8 38.1 50.8 63.5 76.2 101.6 127
Product Codes
T304 SS 10649Z 12649Z 15649Z 20649Z 25649Z 30649Z 40649Z
T316 SS 10669Z 12669Z 15669Z 20669Z 25669Z 30669Z 40669Z 502069Z
Radius 38.1 47.6 57.2 76.2 95.3 114.3 152.4 190.5
Dim A 50.8 76.2 76.2 101.6 127.0 152.4 203.2 254.0
Dim B 0 12.7 0 0 0 0 0 0

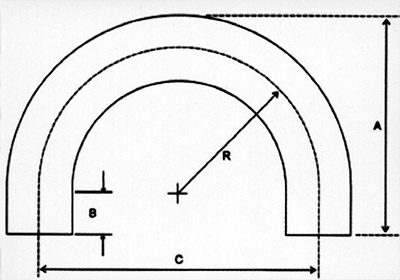

180 Degree Bend
Uni Polish Bends 316 Stainless Steel

Tolerance
Dim A ± 1mm
Dim B Nominal
Dim C Nominal - typically 2x Rx 1.03 If this is critical to your end use, please talk to us first.
Stainless Steel Tube Fittings Dimensions
UNI Dimensions
Tube 0D 25.4 31.8 38.1 50.8 63.5 76.2 101.6
Product Codes
T316 SS 10668U 12668U 15668U 20668U 25668U 30668U 40668U
Radius 38.1 47.6 57.2 76.2 95.3 114.3 152.4
Dim A 80.8 93.5 106.3 131.6 157.1 182.4 233.2
Dim B 30.0 30.0 30.0 30.0 30.0 30.0 30.0

Quick Enquiry

If you have drawings or photos, please email admin@stainlesspsupplies.com.au.

Stainless Product Supplies Product Catalogue

Download to view the 2020 Stainless Product Supplies Product Catalogue.

Download Brochure
Stainless Steel Tube Fittings
