BALL VALVE

Three Piece Ball Valve (BSP)

  • 316 S/S with PTFE Seat
  • Full bore
  • 1000psi (69 Bar) WOG
  • Thread parallel to BS21, -25C to 150C
Three Piece Ball Valve (BSP)
Three Piece Ball Valve (BSP)
1/4" 65 103 10 10 14.1 18.1 36 M5 40 0.55
1/2" 70.5 125 14 10 21.7 21.7 40 M5 54 0.59
1" 95 160 16.8 13 33.8 34 36 M5 74 1.18
11/2" 121 190 19.1 13 48.6 48.6 50 M6 97 2.83
2" 140 190 23.4 16 61 60.5 50 M6 105 4.18
21/2" 173 283 29 16 73.8 76.3 70 M8 125 8.47
4" 225 332 32 19 115.5 114 102 M10 16 21.25

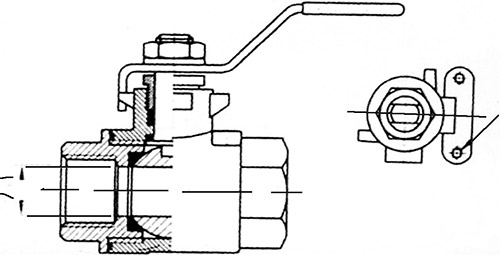

Two Piece Ball Valve (BSP)

  • 316 S/S with PTFE Seat
  • Full bore
  • 2000psi (69 Bar) WOG
  • Thread parallel to BS21, -25C to 150C
Two Piece Ball Valve (BSP)
Two Piece Ball Valve (BSP)
Size d L W
1/4" 9.7 51 10-24 UNC
3/8" 11.6 51 10-24 UNC
1/2" 12.5 61 10-24 UNC
3/4" 15 68 10-24 UNC
1" 20 83 10-24 UNC
11/4" 25 90 1/4-20 UNC
11/2" 32 104 1/4-20 UNC
2" 38 117 1/4-20 UNC

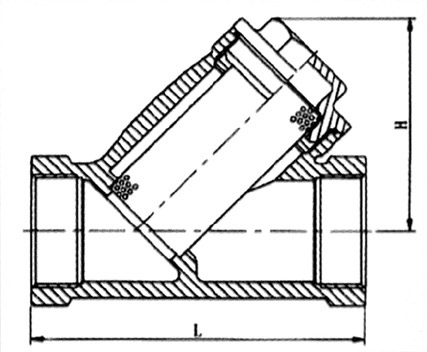

Y Strainer

  • 316 S/S
  • 600psi (41 Bar) WOG
  • Maximum 220˚ Celsius
Y Strainer
Y Strainer
1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3"
76 91.5 107.5 126 140.5 171 171 196
33 39 45 52 64 78 120 50
0.38 0.56 0.87 1.38 1.91 3.02 5.2 7.1
